Introduction

This is a high-quality female Pere David's Deer model with textures in the UDIM format partially, rigging and animation. It has very detailed muscle structures and a realistic oral cavity. The model is made with Blender and Cycles renderer at real-world scale.

It consists of 10 objects: Body, upper gum, lower gum, upper teeth, lower teeth, tongue, iris, sclerae, lacrimal caruncles, lacrimal glands.

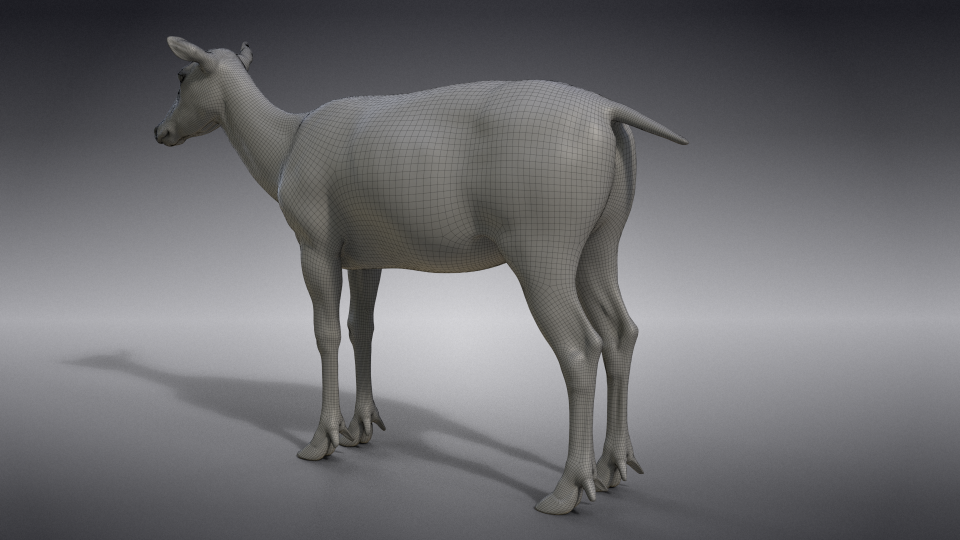

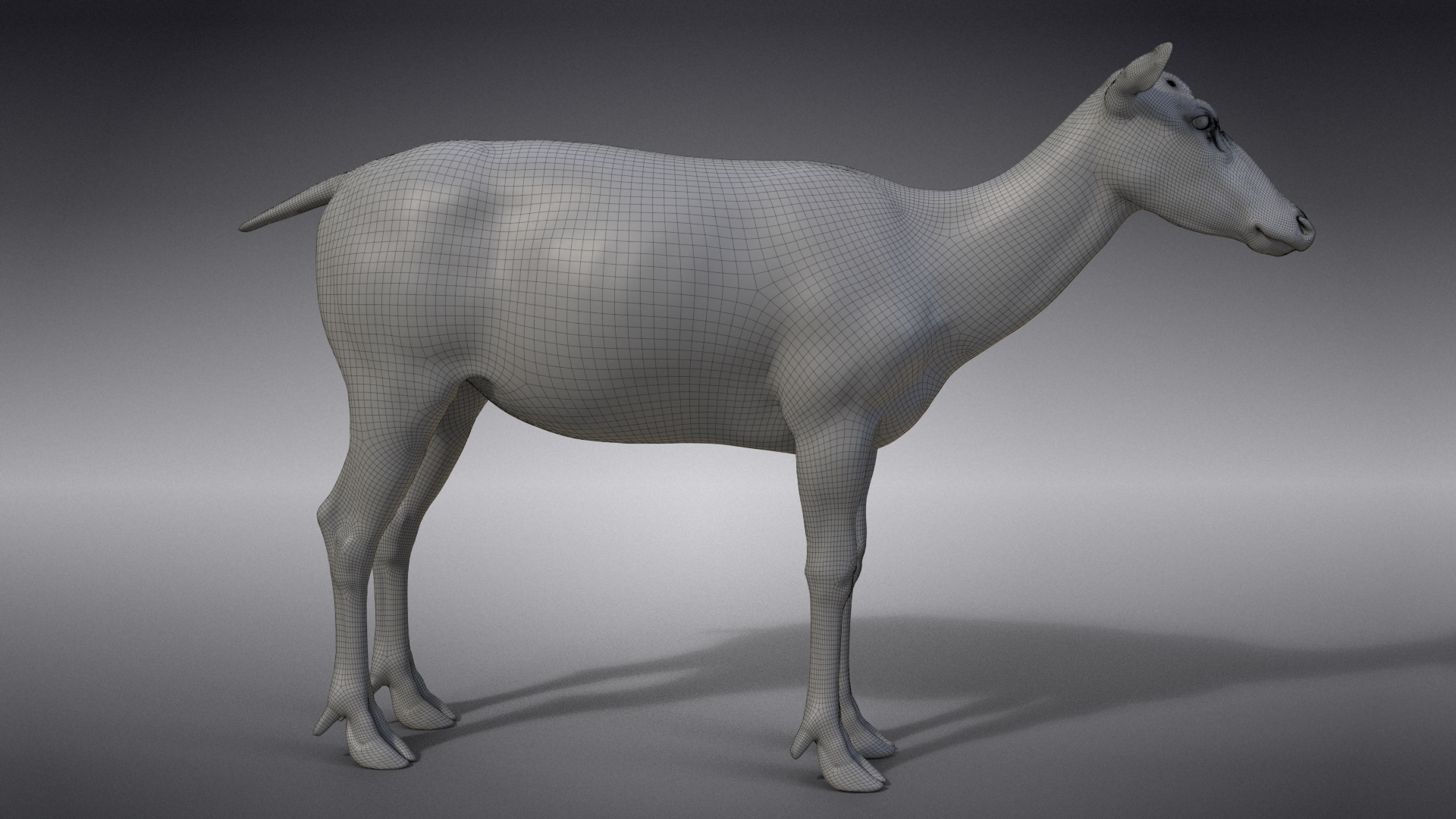

Polygons

• Body: vertices 61,188; polygons 61,186
• Upper gum: vertices 12,113; polygons 12,006
• Lower gum: vertices 6,485; polygons 6,372
• Upper teeth: vertices 34,424; polygons 33,928
• Lower teeth: vertices 22,430; polygons 22,032
• Tongue: vertices 6,058; polygons 6,056
• Iris: vertices 2,340; polygons 2,368
• Sclerae: vertices 1,700; polygons 1,728
• Lacrimal caruncles: vertices 1,316; polygons 1,312
• Lacrimal glands: vertices 780; polygons 776
• Total: vertices 148,834; polygons 147,764

Formats

There is a Blender project and an OBJ file.

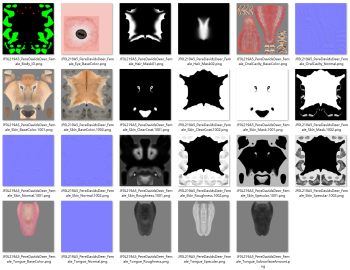

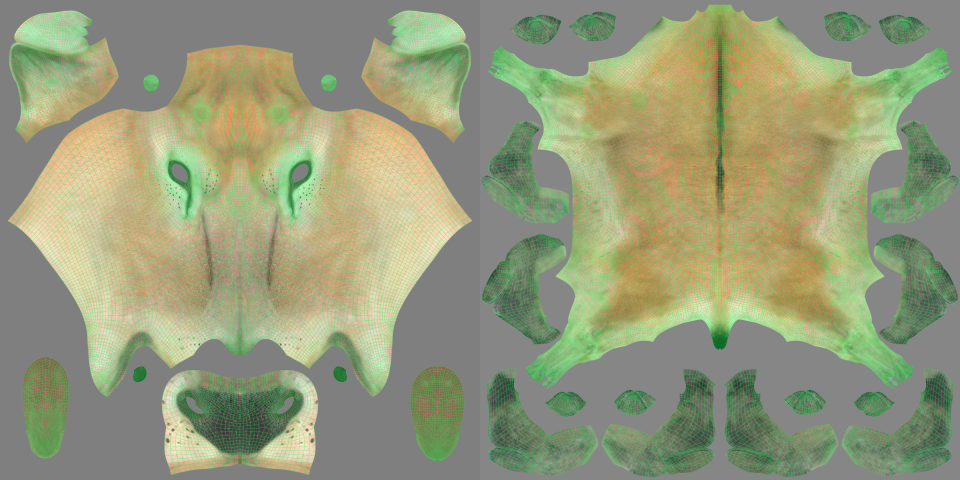

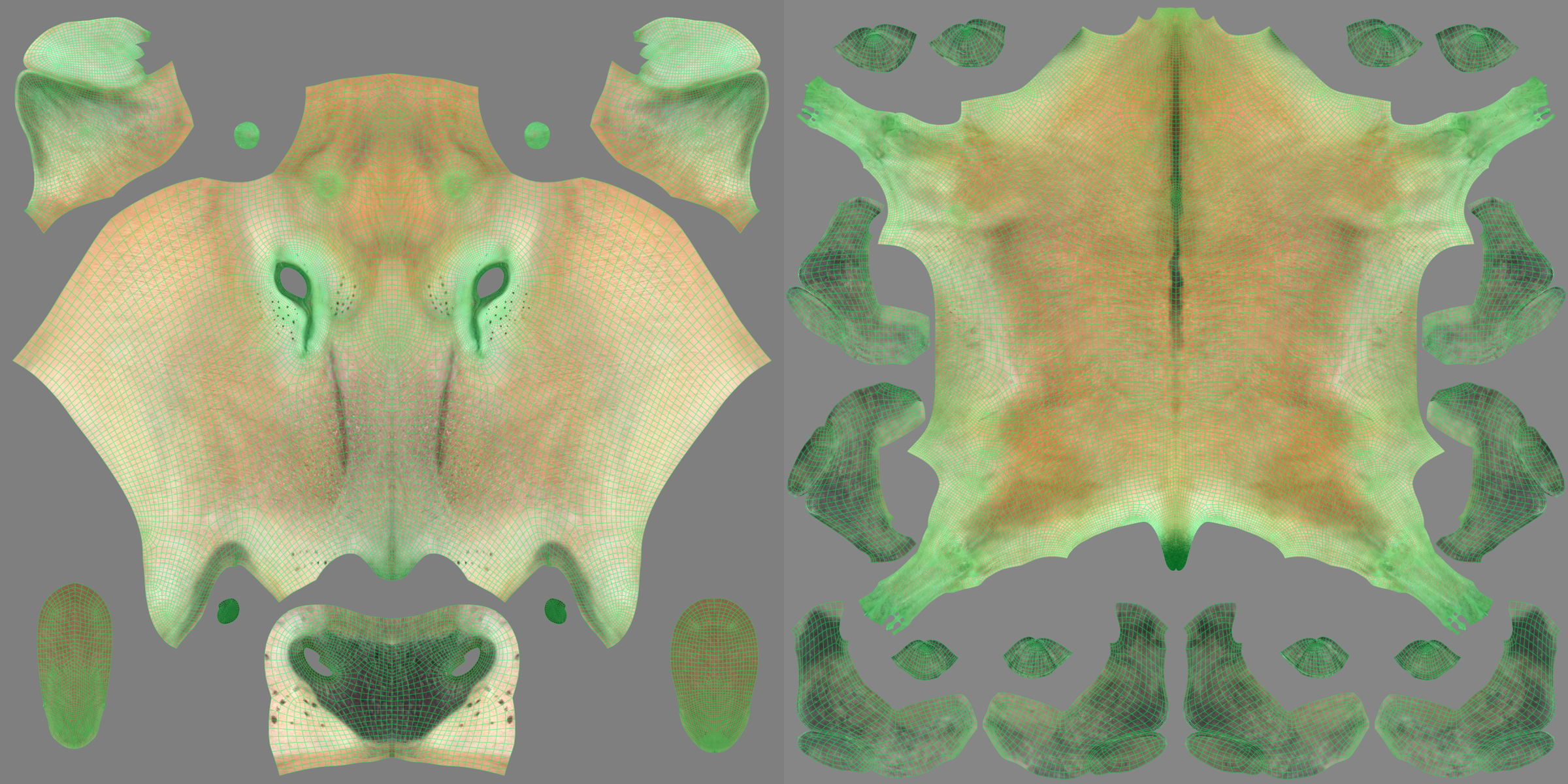

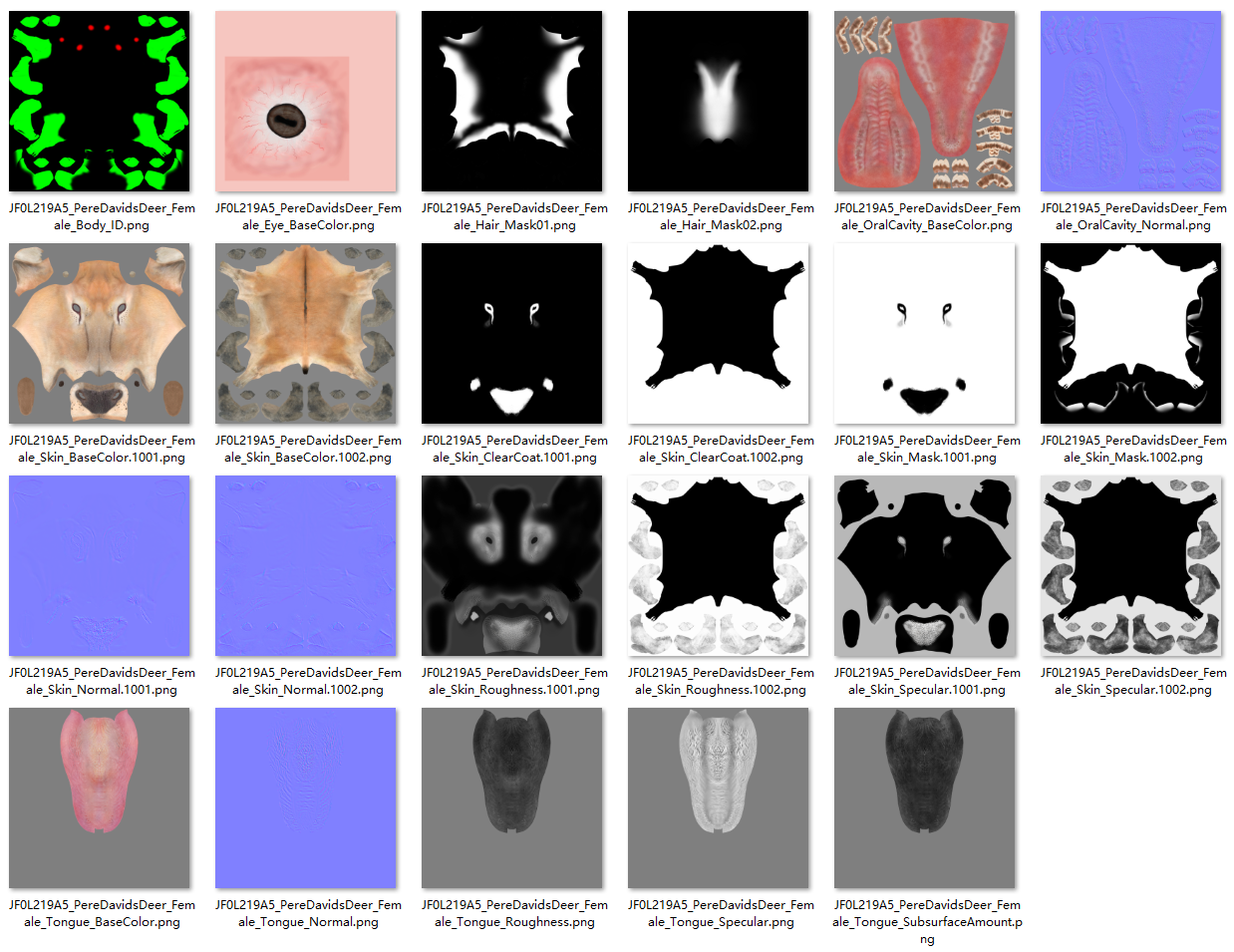

Textures

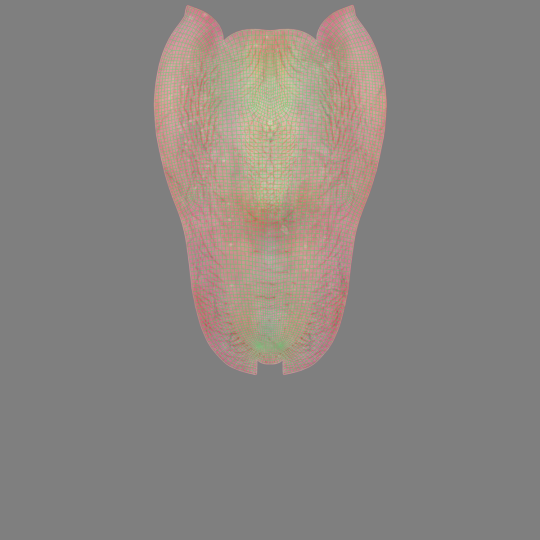

• JF0L219A5_PereDavidsDeer_Female_Tongue_SubsurfaceAmount.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Tongue_Specular.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Tongue_Roughness.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Tongue_Normal.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Tongue_BaseColor.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Specular.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Specular.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Roughness.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Roughness.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Normal.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Normal.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Mask.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_Mask.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_ClearCoat.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_ClearCoat.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_BaseColor.1002.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Skin_BaseColor.1001.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_OralCavity_Normal.png, 2048*2048
• JF0L219A5_PereDavidsDeer_Female_OralCavity_BaseColor.png, 2048*2048
• JF0L219A5_PereDavidsDeer_Female_Hair_Mask02.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Hair_Mask01.png, 4096*4096
• JF0L219A5_PereDavidsDeer_Female_Eye_BaseColor.png, 2048*2048
• JF0L219A5_PereDavidsDeer_Female_Body_ID.png, 2048*2048

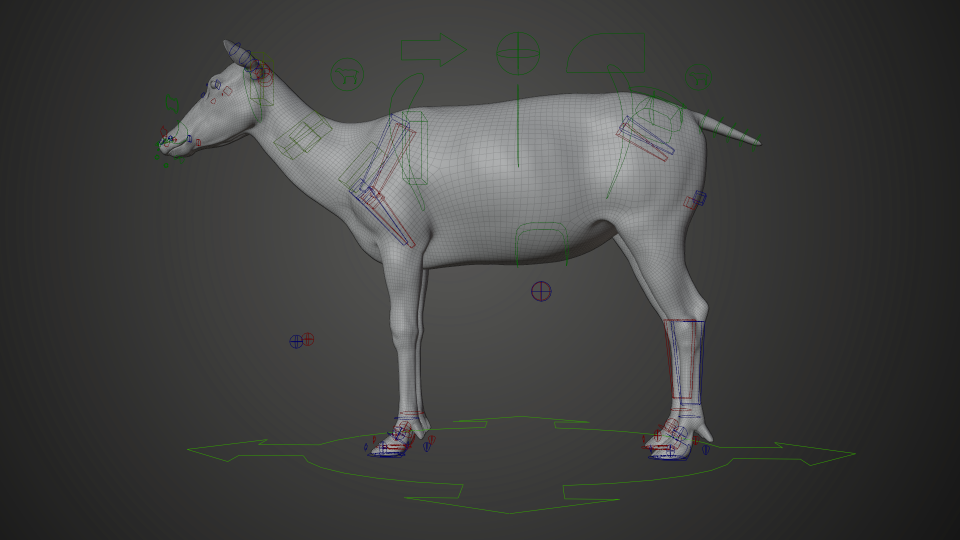

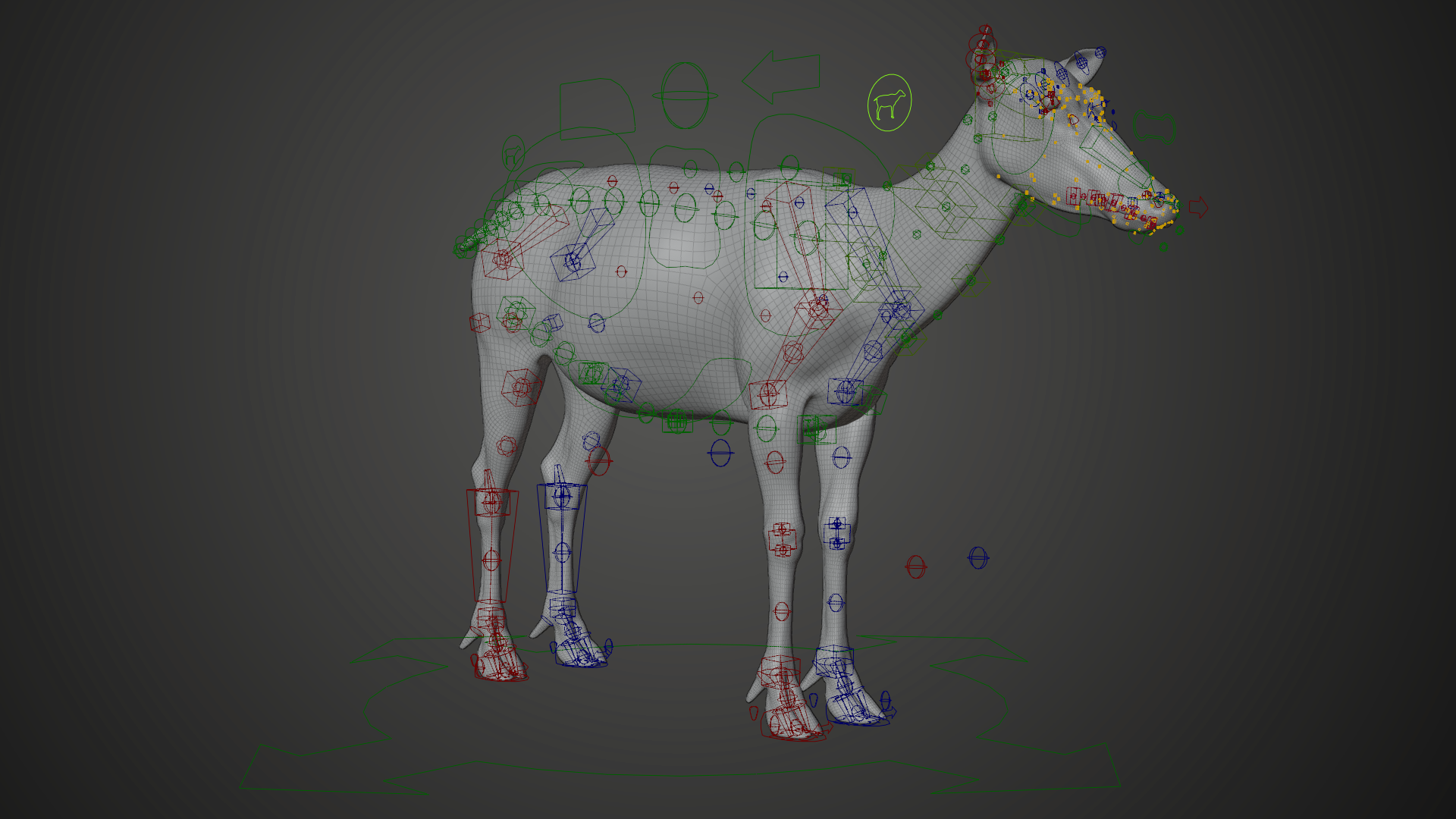

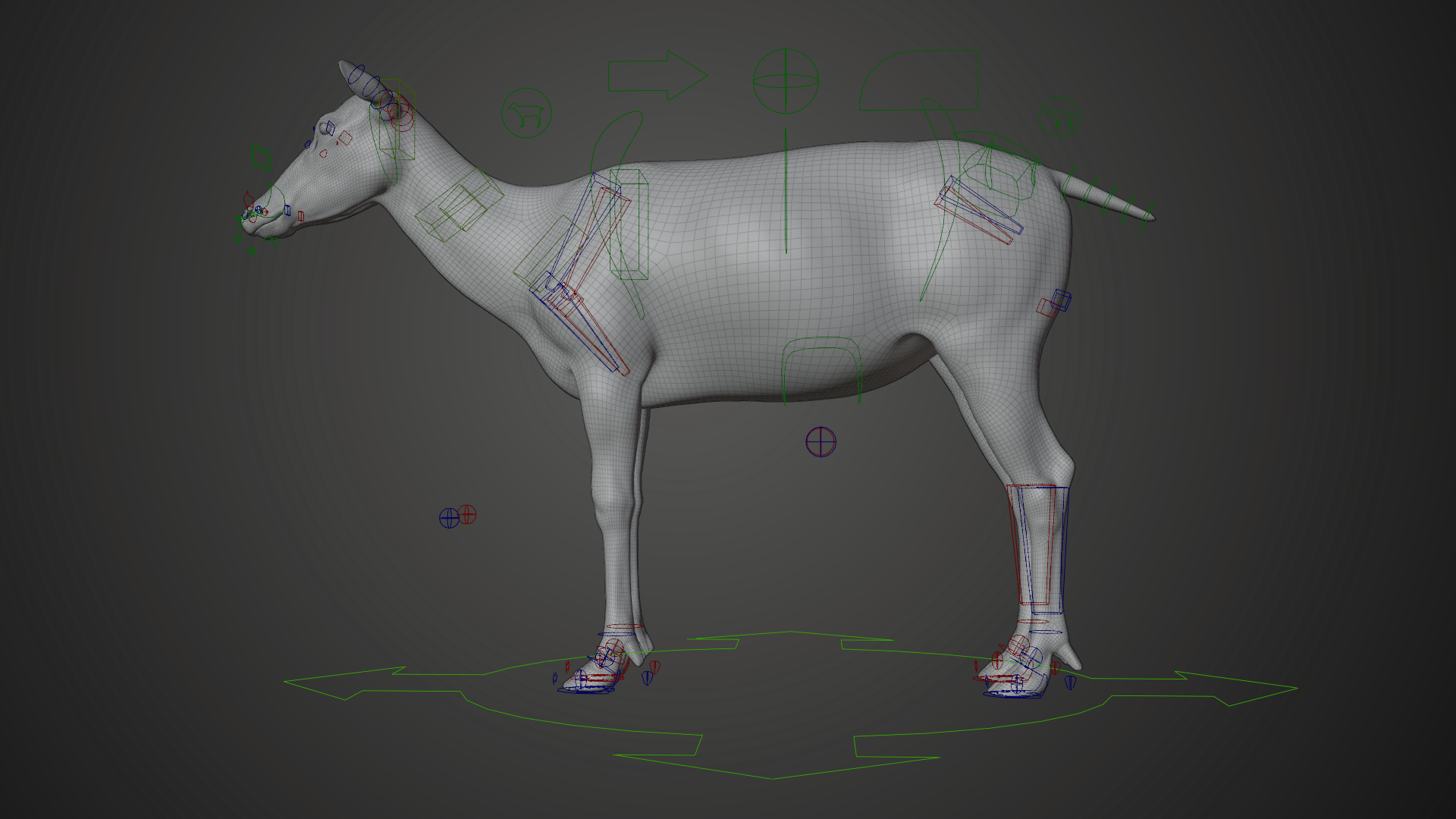

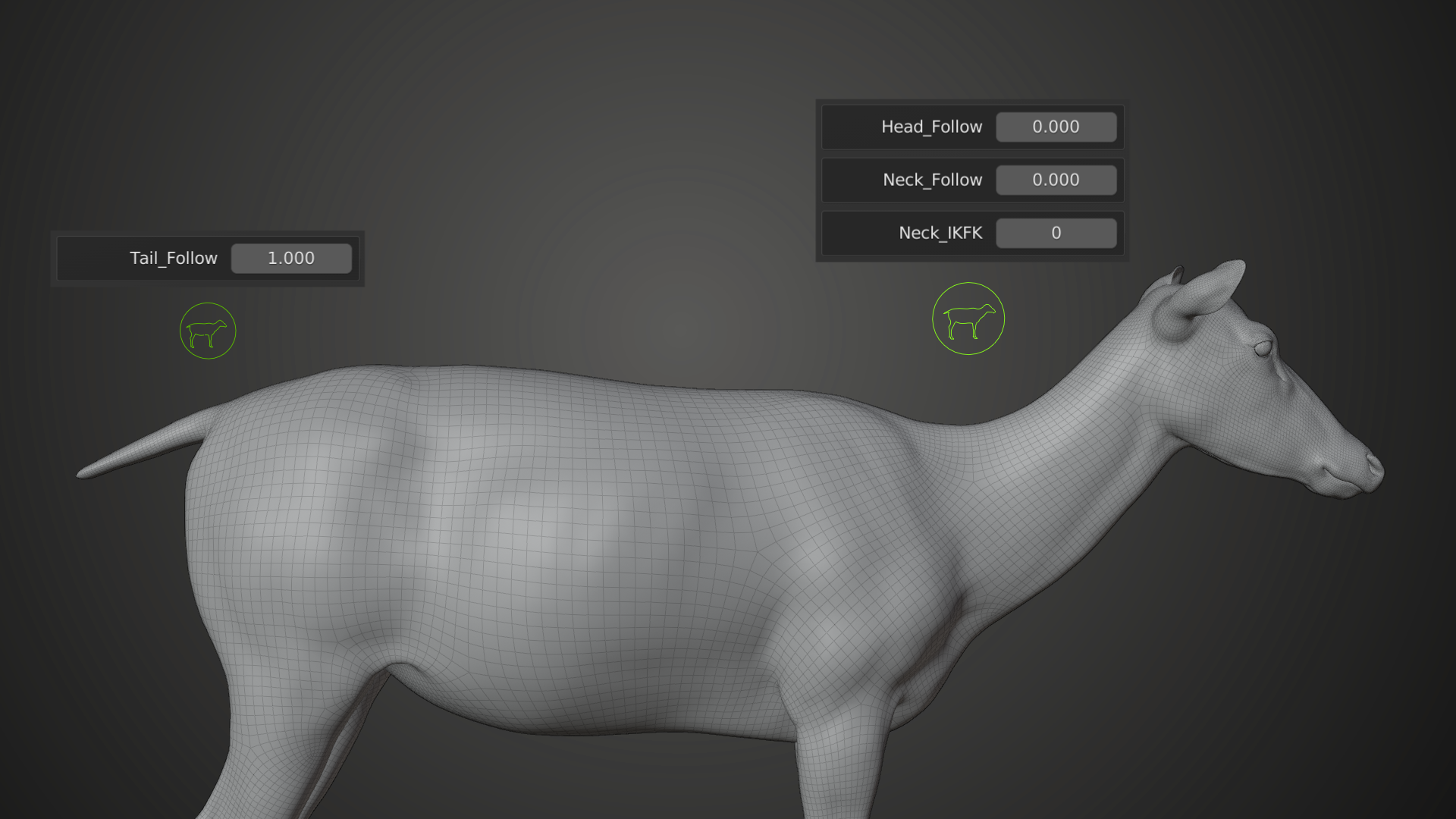

Rigging

Full controllers are available to make it easier to create postures and animations. The features are as follows:

• Root controls the entire model, it is scalable.
• CTR_gravity_b, CTR_gravity_m, CTR_gravity_f control the torso.

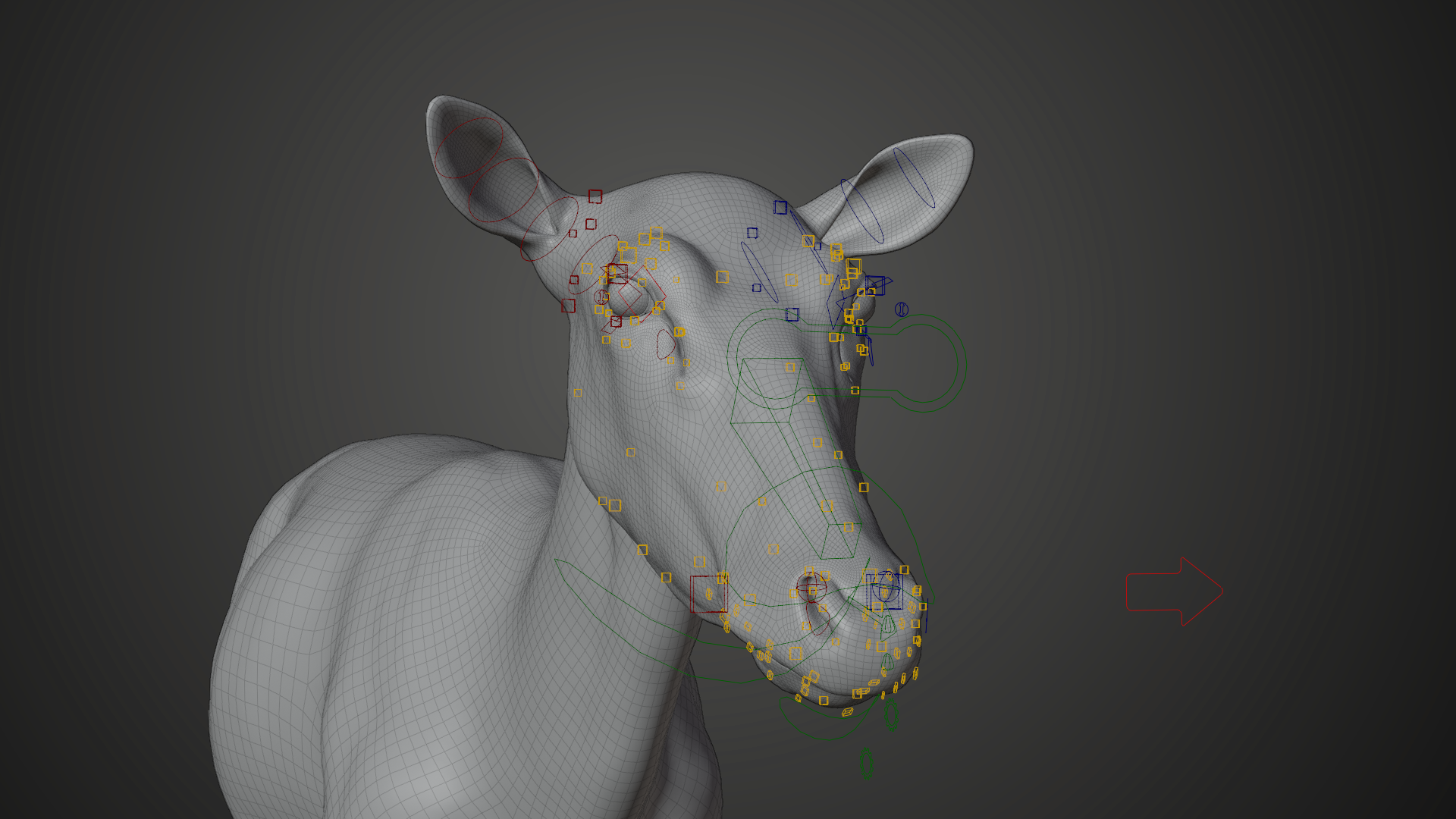

• The face has fine controllers which support detailed facial expressions creation.
• CTR_Tail controls whether the tail follows the body to rotate by customized attributes.
• CTR_Neck controls whether the neck and head follow the body to rotate and the switch of the IK/FK of the neck by customized attributes.

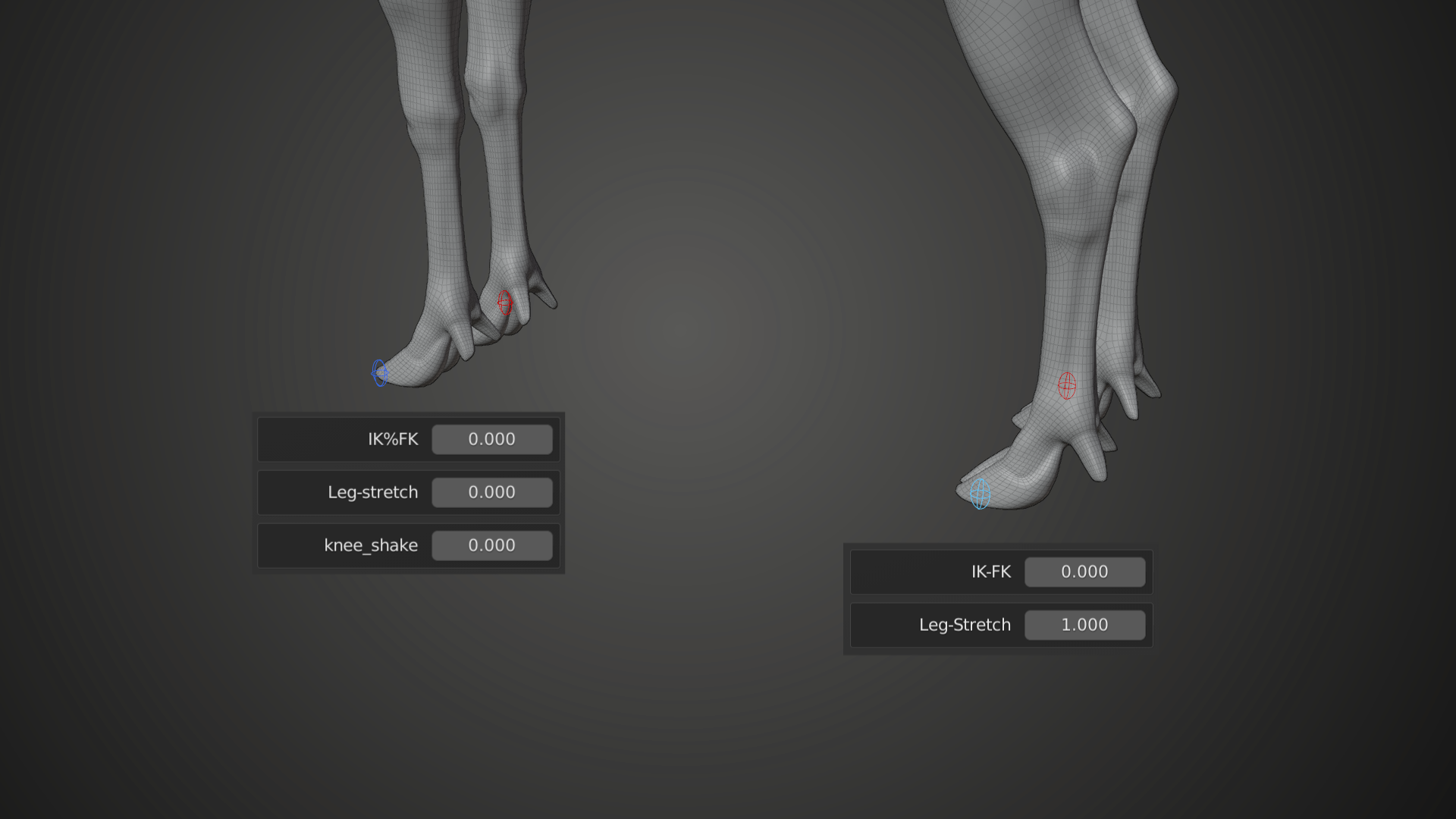

• CTR_Leg_B_Other.L and CTR_Leg_B_Other.R control the switch of IK/FK of the latter legs and the stretch limit of legs by customized attributes.
• CTR_Leg_F_Other.L and CTR_Leg_F_Other.R control the switch of IK/FK of the latter legs and the stretch limit of legs by customized attributes. When the knees jitter during animation, this issue can be fixed by the customized attribute "knee_shake".
• CTR_OpenToe_B.L, CTR_OpenToe_B.R, CTR_OpenToe_F.L, CTR_OpenToe_F.R control the flexion and extension of toes.
• CTR_Spine_B controls the latter spine; CTR_spine_m controls the middle spine; CTR_spine_f controls the anterior spine; CTR_Neck_a controls the root of neck; CTR_Neck_c controls the head.
• CTR_masticate controls the masticating animation.
• And more ...

Animations

• Loopable eating animation at 30 fps, frame range 0-274;
• Loopable lying animation at 30 fps, frame range 0-335;
• Unlooped looking animation at 30 fps, frame range 0-240;
• Unlooped walking animation at 30 fps, frame range 0-36;

[ytb-vid=4iLu4hz9kzM]

[ytb-vid=lJqYqwlJ8gk]

[ytb-vid=PDI6n5zN-Hk]

[ytb-vid=eKeUFUocAIA]

Features

The model is in meter units at real-world scale.

The Display button of the fur is disabled.

The rendering time is relatively long because the animal is of high quality. If you want a faster rendering in the background, here are some optimization methods:

Decrease the number of hair children, and increase the thickness of hair

Decrease the steps of the Interpolated spine.

If the initial pose is needed, you need to disable Repair_Lie of body, as well as reset location and rotation of all controllers(shortcut <Alt> + R/G)
